torchwavelets

torchwavelets

Differentiable discrete wavelet transforms for PyTorch.

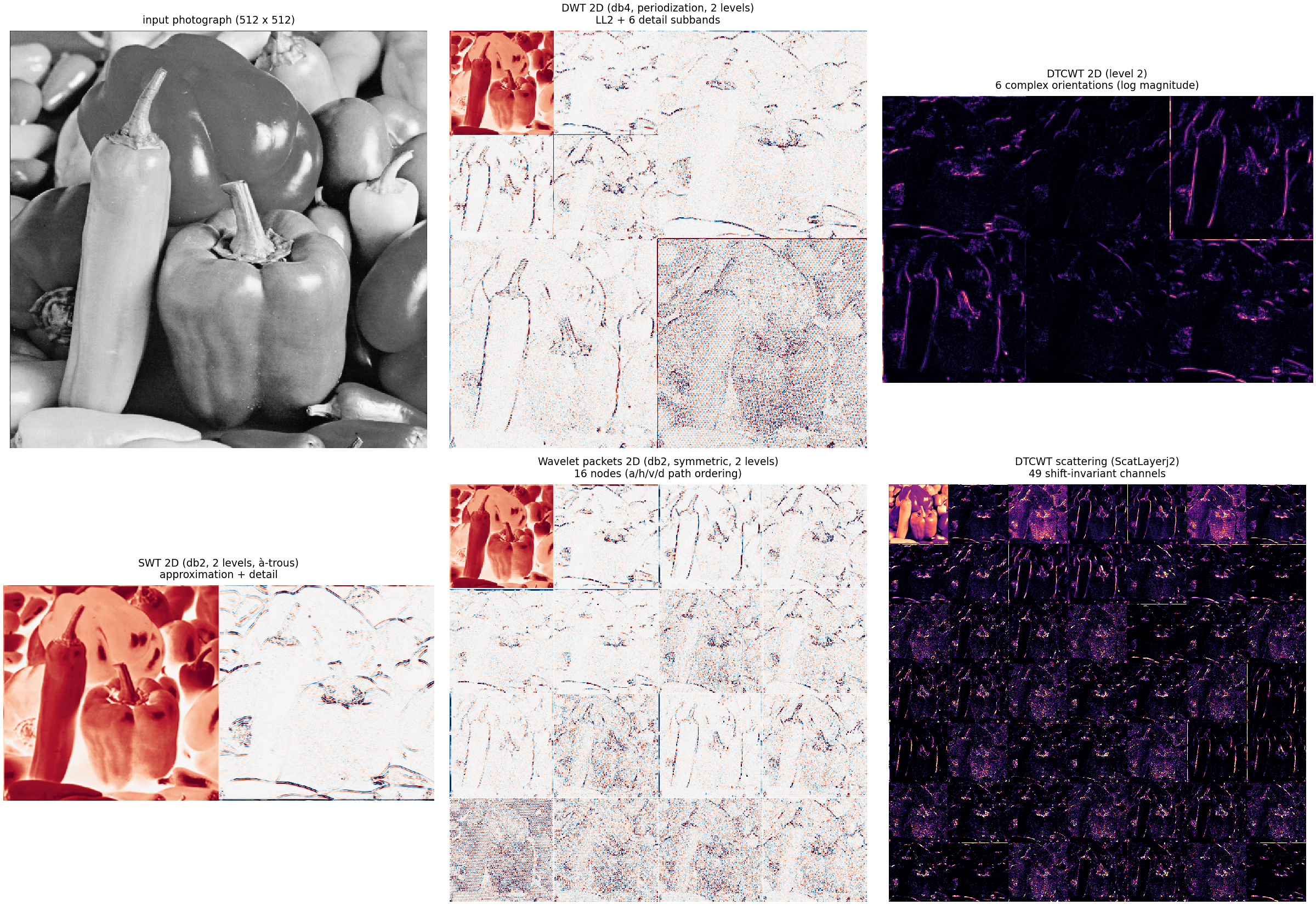

torchwavelets provides 1D and 2D discrete wavelet transforms (DWT), their inverses, the 2D dual-tree complex wavelet transform (DTCWT) with native complex tensors, DTCWT scattering networks, the stationary wavelet transform (SWT) and wavelet packets — built to respect PyTorch's precision, device and autocast semantics.

Why another wavelet library?

The reference implementation, fbcotter/pytorch_wavelets, is unmaintained (last commit 2023) and has well-known problems:

• AMP / mixed precision is broken — the custom autograd.Functions run their backward in float32 against float16 gradients (expected scalar type Half but found Float, issue #63).
• Filters are baked in at construction time via torch.get_default_dtype(); feeding a float16 tensor to a float32-built transform fails.
• Boundary handling does not match PyWavelets exactly and fails for small signals; the stationary wavelet inverse is dead code.
• No 1D/3D DTCWT, no wavelet packets, no native complex tensors, stale CI.

torchwavelets fixes these at the design level:

Design principles

1. Output dtype == input dtype. fp16/bf16/fp32/fp64 in → the same out. Filters are resolved lazily per (dtype, device) and cached; nothing is mutated during forward, so torch.compile, DDP and mixed-precision training all behave. (One documented exception: the DTCWT family computes half and bfloat16 inputs in float32 — complex16 kernels do not exist — and runs in an autocast-disabled scope, returning float32.)
2. Autocast-native. The transforms are built from plain conv2d / conv_transpose2d ops (no custom autograd.Function), so torch.autocast and torch.amp.GradScaler work without any special-casing. The DTCWT family computes in an autocast-disabled scope (its complex bandpasses have no bf16 kernels) and returns float32 for half/bf16 inputs.
3. PyWavelets-exact boundary handling. All modes (zero, symmetric, reflect, periodization, periodic, constant, replicate) match pywt.dwt / pywt.idwt bit-for-bit, including odd-length and tiny signals (index-based padding, no size limits).
4. Pure torch ops. Index-based padding keeps everything differentiable, higher-order differentiable, and torch.compile-friendly.

Installation

From PyPI (stable release):

pip install torchwavelets

From source (development):

git clone https://github.com/relmonta/torchwavelets.git
cd torchwavelets
pip install -e .[test,examples]

Usage

import torch
import torchwavelets as tw

x = torch.randn(4, 3, 64, 64)          # (N, C, H, W)

# Functional API
yl, yh = tw.dwt2d(x, wave="db4", mode="symmetric", level=3)
xr = tw.idwt2d((yl, yh), wave="db4", mode="symmetric")

# Module API
dwt = tw.DWT2D(wave="db4", J=3, mode="symmetric")
yl, yh = dwt(x)
xr = tw.IDWT2D(wave="db4", mode="symmetric")((yl, yh))

# 1D
y = torch.randn(4, 3, 1024)
yl, yh = tw.dwt1d(y, wave="db6", level=3)

# Mixed precision just works
x16 = x.half()
yl16, _ = dwt(x16)          # -> float16 output
with torch.autocast("cuda", dtype=torch.bfloat16):
    yl_bf, _ = dwt(x.float())  # -> bfloat16 output (on CUDA)

Compatibility with pytorch_wavelets

from torchwavelets.compat import DWTForward, DWTInverse, DWT1DForward, DWT1DInverse

xfm = DWTForward(J=3, wave="db3", mode="zero")

The compat layer keeps the old API but fixes the old semantics: a float16 input works regardless of the dtype used when the transform was constructed.

Status

• [x] DWT 1D / 2D, analysis + synthesis, all boundary modes
• [x] float16 / bfloat16 / float32 / float64
• [x] PyWavelets numerical parity tests, gradient checks, AMP tests
• [x] torch.compile-compatible module API (fullgraph=True)
• [x] Device-portable: CPU, CUDA, multi-GPU, hybrid and Grace (GH200) nodes
• [x] DTCWT 1D / 2D / 3D (native complex tensors, near_sym_* / qshift_* banks)
• [x] DTCWT scattering layers (ScatLayer, ScatLayerj2)
• [x] General arbitrary-order scattering network (DTCWTScattering)
• [x] Stationary (undecimated) wavelet transform 1D / 2D
• [x] Wavelet packets 1D / 2D (WaveletPacket, WaveletPacket2D)
• [x] Scattering network (deeper, arbitrary-order)

Examples and applications

Self-contained, reproducible demos with real data (photograph, CIFAR-10, MIT-BIH ECG) — run python examples/<script>.py from the repository root (data is cached in ~/data/torchwavelets, figures land in docs/figures/). See examples/README.md for the quick reference and docs/examples.md for the full illustrated walkthrough with results and figures.

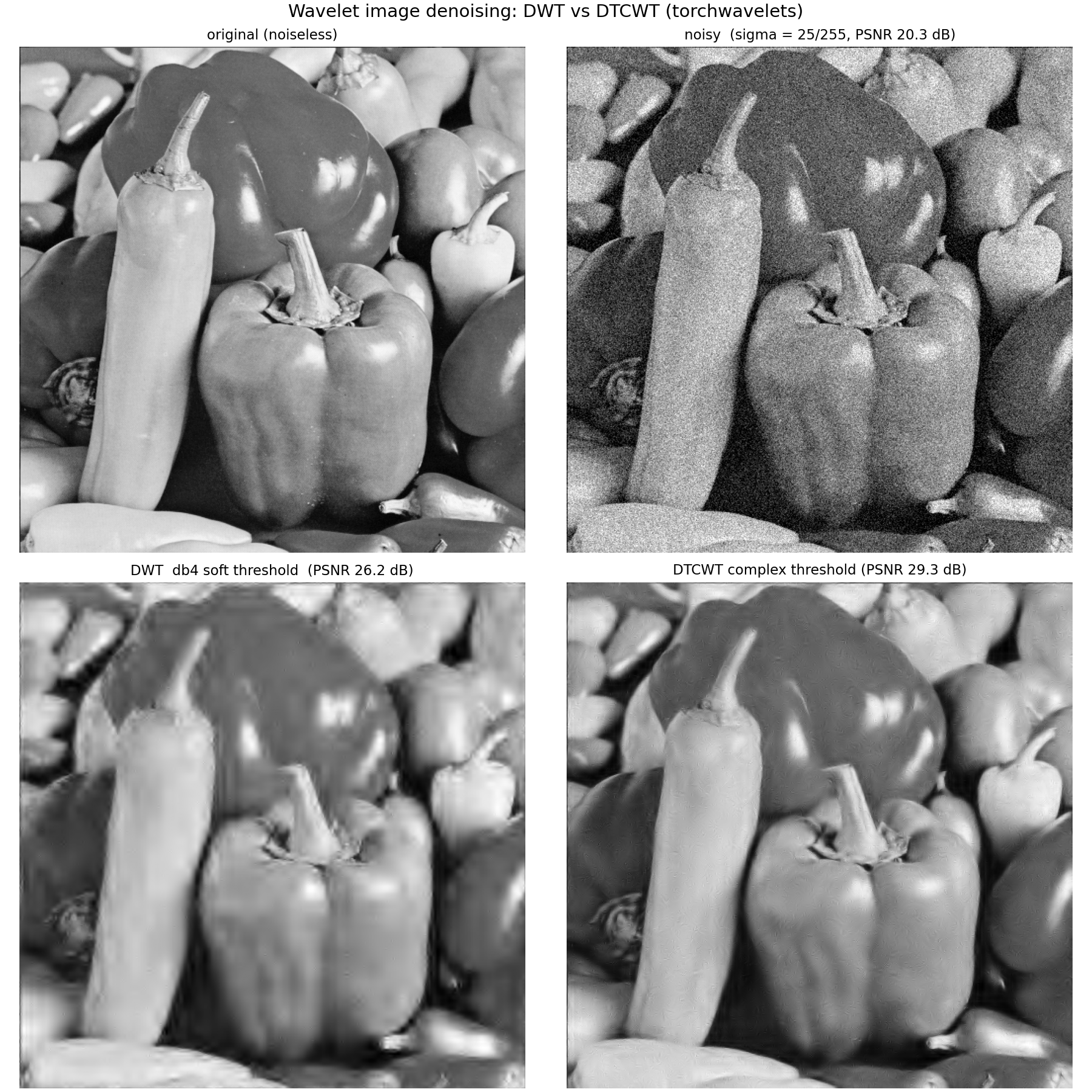

Application 1 — image denoising (DWT vs DTCWT). A photograph corrupted with Gaussian noise (sigma = 25/255, PSNR 20.3 dB) is restored by per-level 3-sigma soft thresholding of the wavelet coefficients. The redundant, nearly shift-invariant DTCWT gains +3.1 dB PSNR over the critically sampled DWT (29.3 dB vs 26.2 dB).

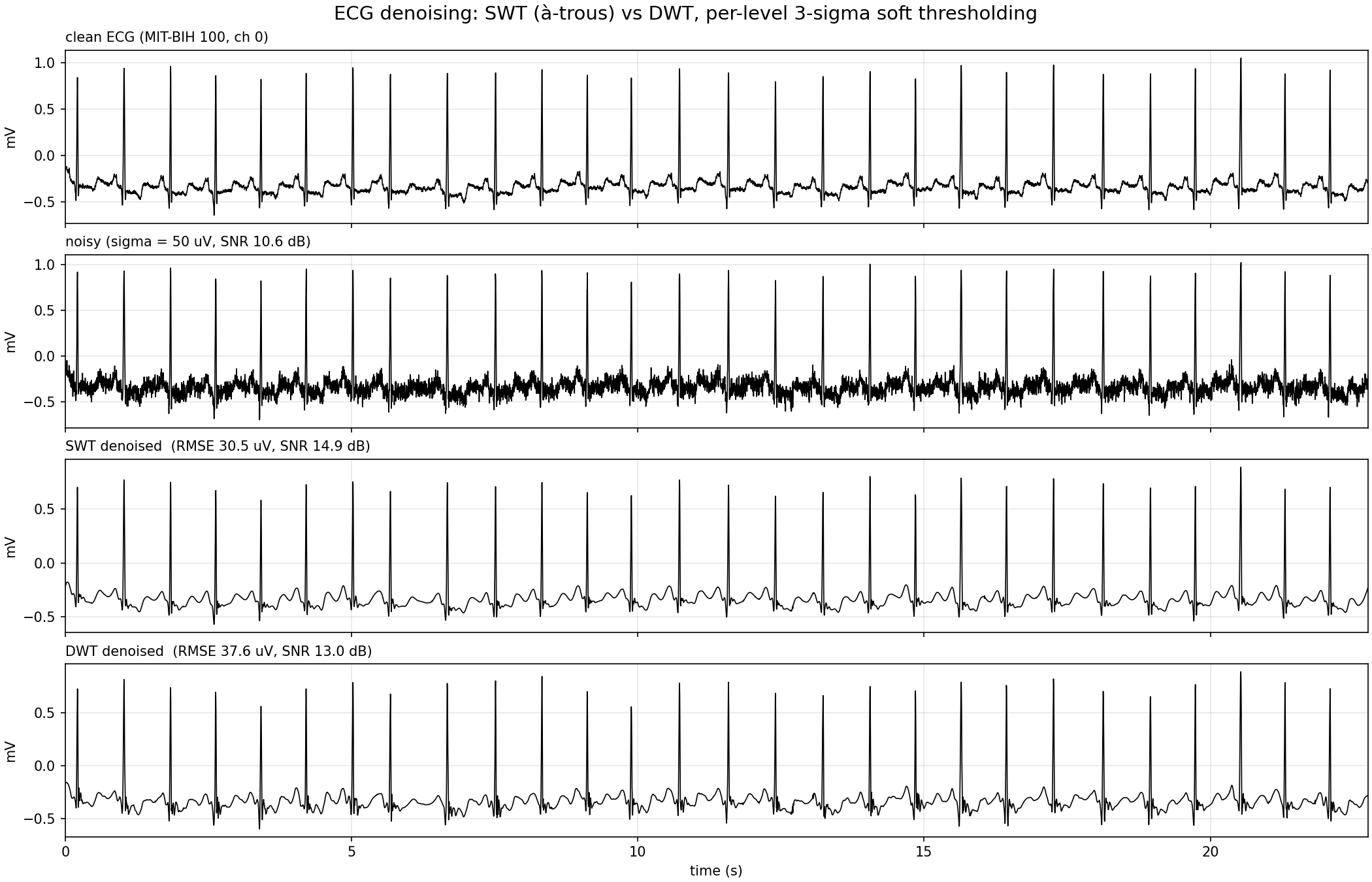

Application 2 — ECG denoising (SWT vs DWT). Real 360 Hz ECG (MIT-BIH Arrhythmia record 100) plus 50 uV noise (SNR 10.6 dB), restored by the same per-level soft thresholding. The undecimated SWT gains +1.9 dB SNR over the DWT (14.9 dB vs 13.0 dB).

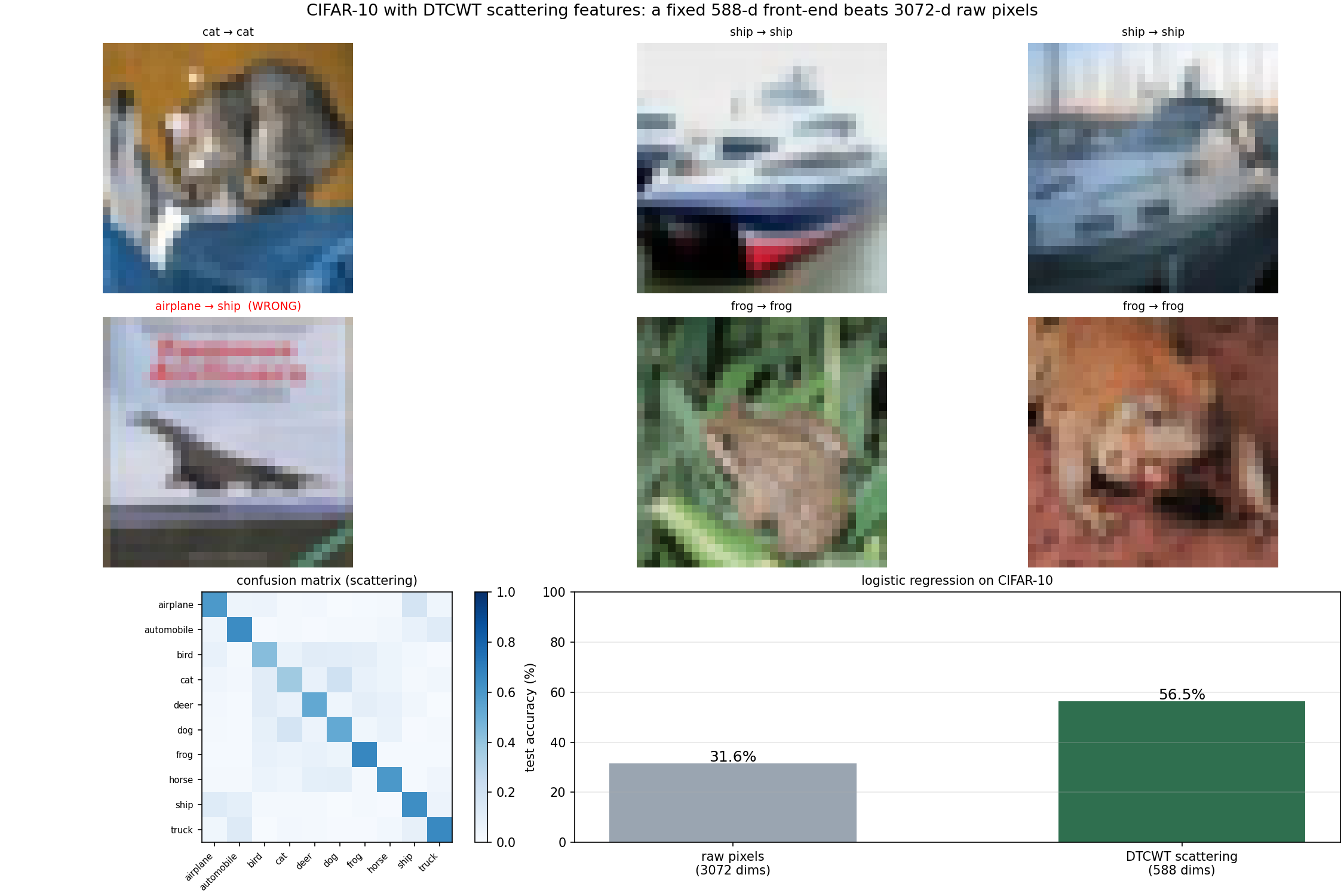

Application 3 — CIFAR-10 classification with scattering features. A fixed (untrained) DTCWT scattering front-end (DTCWTScattering(J=2, max_order=2)) extracts 588 shift-invariant dimensions per 32x32 image (147 invariants, 2x2-average pooled); a logistic regression reaches 56.5 % test accuracy, versus 31.6 % on 3072 raw pixels — with 5x fewer dimensions and no learned front-end.

torch.compile

The module API (DWT2D, IDWT2D, DWT1D, IDWT1D) resolves its filters into buffers at construction time and runs only torch ops in forward, so it is fully traceable:

import torch
import torchwavelets as tw

dwt = torch.compile(tw.DWT2D(wave="db4", J=3, mode="symmetric"), fullgraph=True)
yl, yh = dwt(x)

The functional API (tw.dwt2d(x, wave=...)) is eager-only for the filter resolution step; use the module API under torch.compile.

Ecosystem notes

• Serialization: all transforms are plain nn.Modules — state_dict save/load and torch.save/torch.load work as usual.
• DataLoader / datasets: the module API takes batched (N, C, ...) tensors, so it slots directly into DataLoader pipelines.
• torch.func: jacrev/jacfwd and double-backward work through the transforms (all plain torch ops).
• torch.distributed (DDP): modules hold no state beyond filter buffers and never mutate inputs, so DDP training works (smoke-tested with gloo).
• torch.jit.script is not supported (the transforms use dynamic loops over levels); use torch.compile instead, which is fully supported.
• torch.vmap: the API is already batched (N, C, ... required), so vmap is unnecessary; the batch dimension plays that role.
• torch.inference_mode: supported everywhere.

Device portability

Tests parametrize over every available device (CPU plus all CUDA devices), so the suite automatically covers hybrid CPU/GPU nodes and NVIDIA Grace-Hopper (ARM64) machines; GPU results are reported in the CHANGELOG.

Credits and acknowledgements

torchwavelets is an independent implementation, but it stands on the shoulders of the wavelet community. The parts of the code that are ports or adaptations are credited here; everything else was written from the mathematics and the public conventions.

• Nick Kingsbury (Cambridge University) — the dual-tree complex wavelet transform itself. The filter banks (near_sym_a/b, qshift_a/b, ..., shipped in torchwavelets/dtcwt/data/), the quarter-sample-shift design, the orientation convention and the symmetric (half-sample) boundary handling originate from his DTCWT toolbox, which is free for research use only. The 3-D DTCWT follows the same work-grid construction.
• fbcotter/pytorch_wavelets — the unmaintained reference implementation this package replaces. Its low-level DTCWT operations (colfilter, rowfilter, coldfilt, rowdfilt, colifilt, rowifilt, q2c, c2q, orientation assembly), the two-scale scattering layers (ScatLayer, ScatLayerj2) and the pytorch_wavelets-compatible API (torchwavelets.compat) are ports of that codebase, rewritten on plain torch ops to fix its AMP, dtype and boundary problems.
• PyWavelets — the parity oracle for the DWT, SWT and wavelet packets. The boundary modes, coefficient shapes, swt conventions, packet paths/sequency ordering and the "drop extra sample" reconstruction rule all mirror PyWavelets exactly; the test suite is bit-exact against it.
• dtcwt (numpy reference implementation) — the DTCWT parity oracle for 1-D/2-D/3-D; the test suite is bit-exact against it to ~1e-15.
• Stéphane Mallat — the scattering-transform theory. The scattering layers and the arbitrary-order DTCWTScattering network implement the Mallat recipe (wavelet modulus + smoothing) with a DTCWT front-end.
• PyTorch ecosystem — torch.compile, autocast and nn.Module conventions; the tests follow the standard PyTorch-ecosystem usage patterns (serialization, DataLoader, torch.func, DDP).

If you use this package in research, please cite it — see CITATION.cff.

Primary references

1. N. G. Kingsbury, The dual-tree complex wavelet transform: a new efficient tool for image restoration and enhancement, EUSIPCO 1998.
2. N. G. Kingsbury, Complex wavelets for shift invariant analysis and filtering of signals, Applied and Computational Harmonic Analysis, 2001.
3. I. W. Selesnick, R. G. Baraniuk, N. G. Kingsbury, The dual-tree complex wavelet transform, IEEE Signal Processing Magazine, 2005.
4. S. Mallat, Group invariant scattering, Communications on Pure and Applied Mathematics, 2012.
5. I. Daubechies, Ten Lectures on Wavelets, SIAM, 1992.

License

Apache-2.0 (see LICENSE). See Credits and acknowledgements for the upstream sources: the DTCWT filter banks originate from Nick Kingsbury's MATLAB toolbox, which is free for research use only — relevant if you plan commercial use of the DTCWT parts.
